Installing and configuring TruConnect

TruConnect is the local Windows application that bridges the weighbridge scale (static, mobile, or multideck) to the TruLoad frontend. It reads weight data over serial, TCP, UDP, or HTTP and streams it into the browser via a local WebSocket. It also writes to connected RDU display boards.

This chapter is for the operator or station admin who installs TruConnect on a new workstation, or updates an existing install.

Download the installer

TruConnect is released through GitHub Releases. Every release has a signed Windows NSIS installer attached.

Download the latest release from the TruConnect GitHub Releases page. Each release includes a signed Windows NSIS installer.

Download TruConnect-<version>-Setup.exe from the Assets section of the chosen release.

Install

  1. Right-click the downloaded installer and choose Run as administrator.
  2. Accept the license terms.
  3. Pick the install path (keep the default unless your station has a prescribed location).
  4. Let the installer finish and launch TruConnect from the desktop shortcut.

The first launch creates the local SQLite database and writes default configuration into %APPDATA%/TruConnect.

First-run configuration

  1. Account settings — enter the TruLoad backend URL, station ID, and service credentials supplied by the platform admin. Account settings

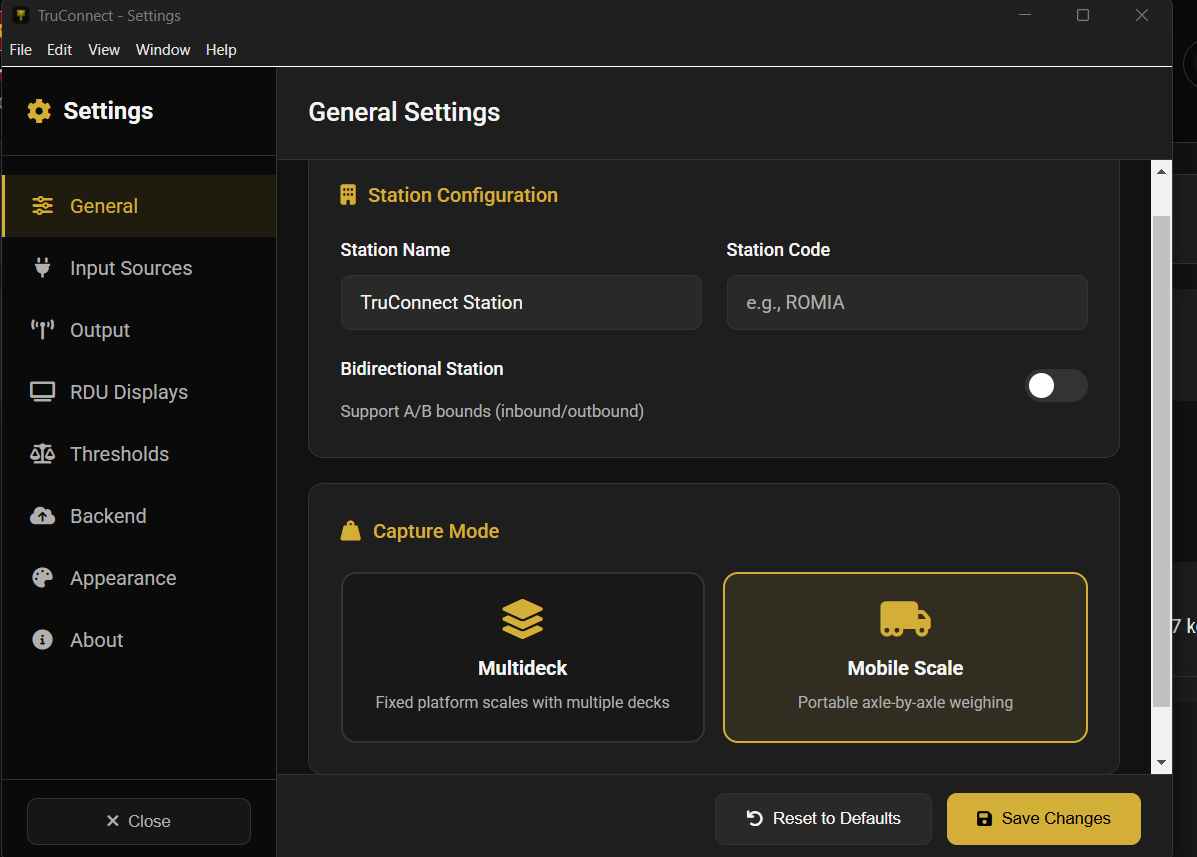

  2. General settings — confirm the operator name, language, and auto-start behaviour. General settings

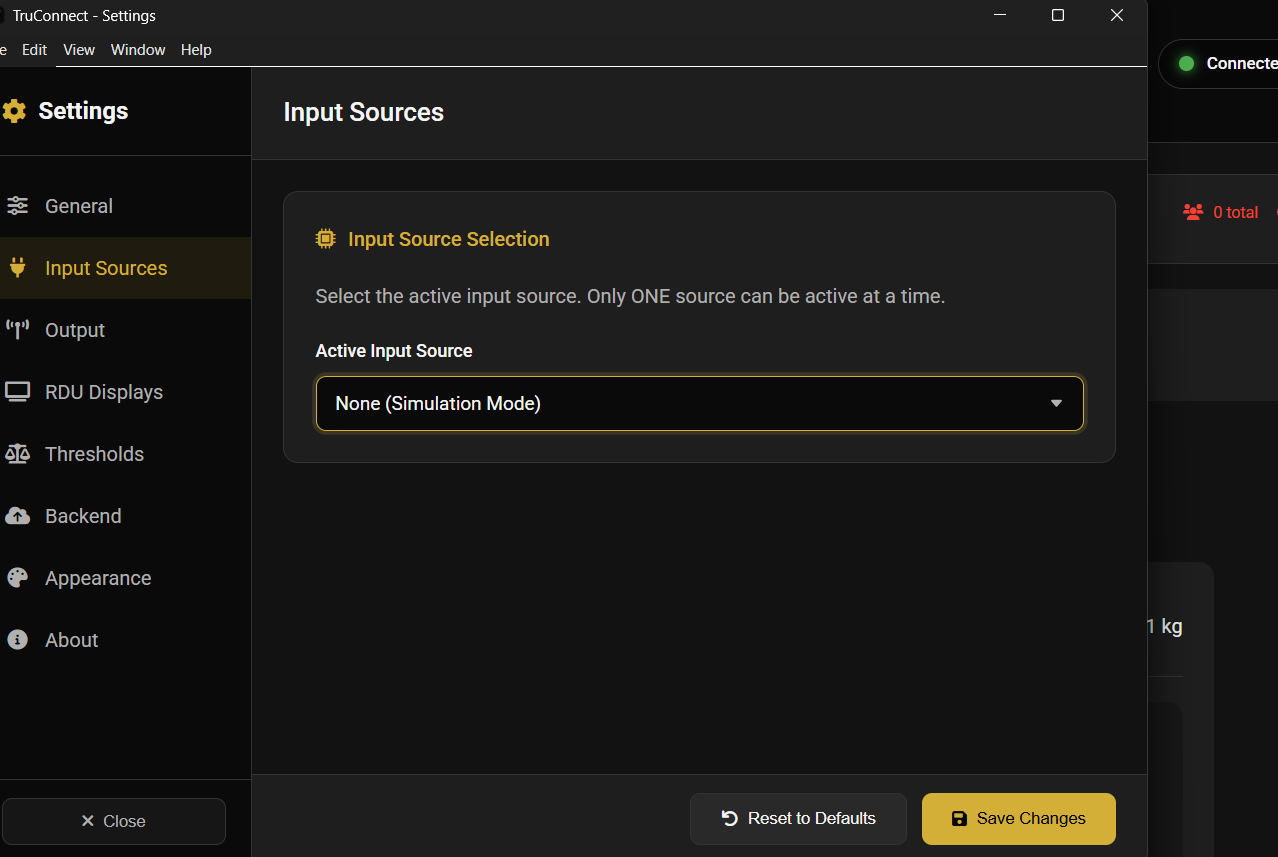

  3. Input source — choose serial, TCP, UDP, or HTTP, and enter the scale parameters. For serial scales, select the COM port, baud rate, and parser (Cardinal, ZM, I1310, Mobile, or Custom). Input sources

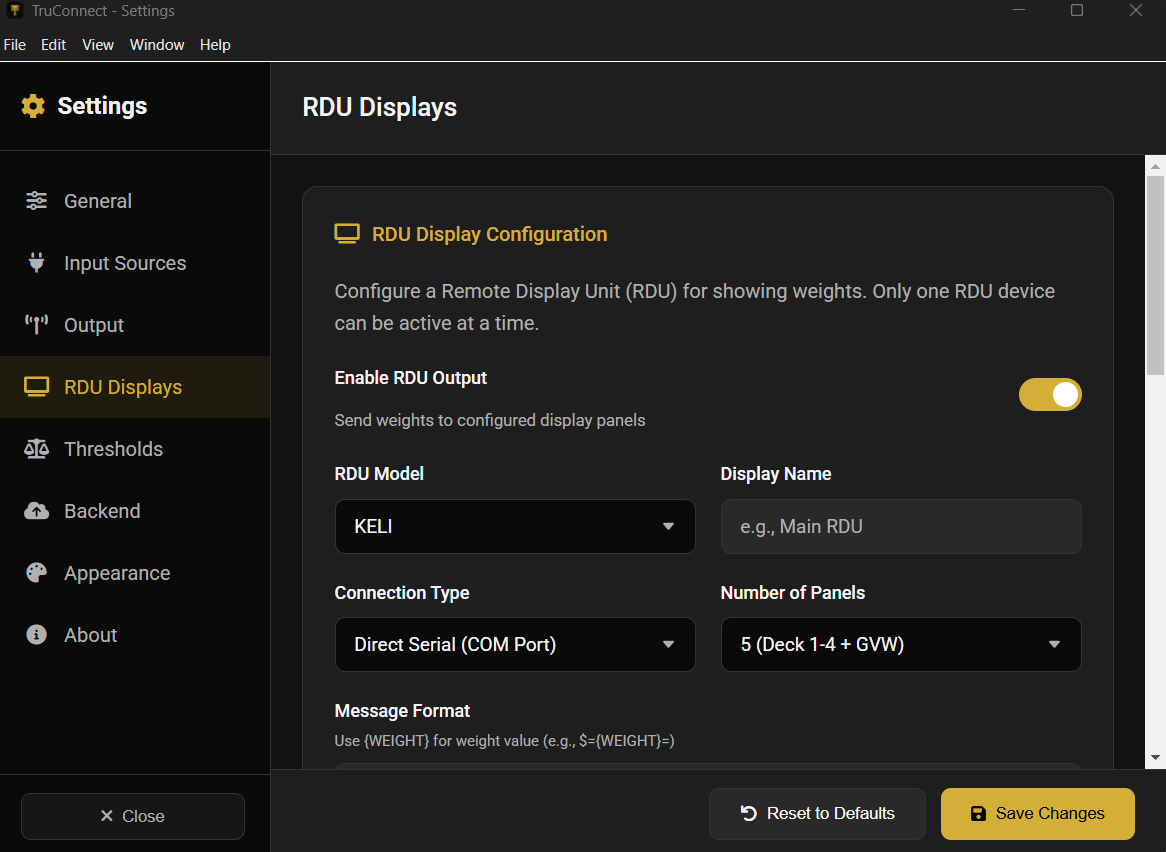

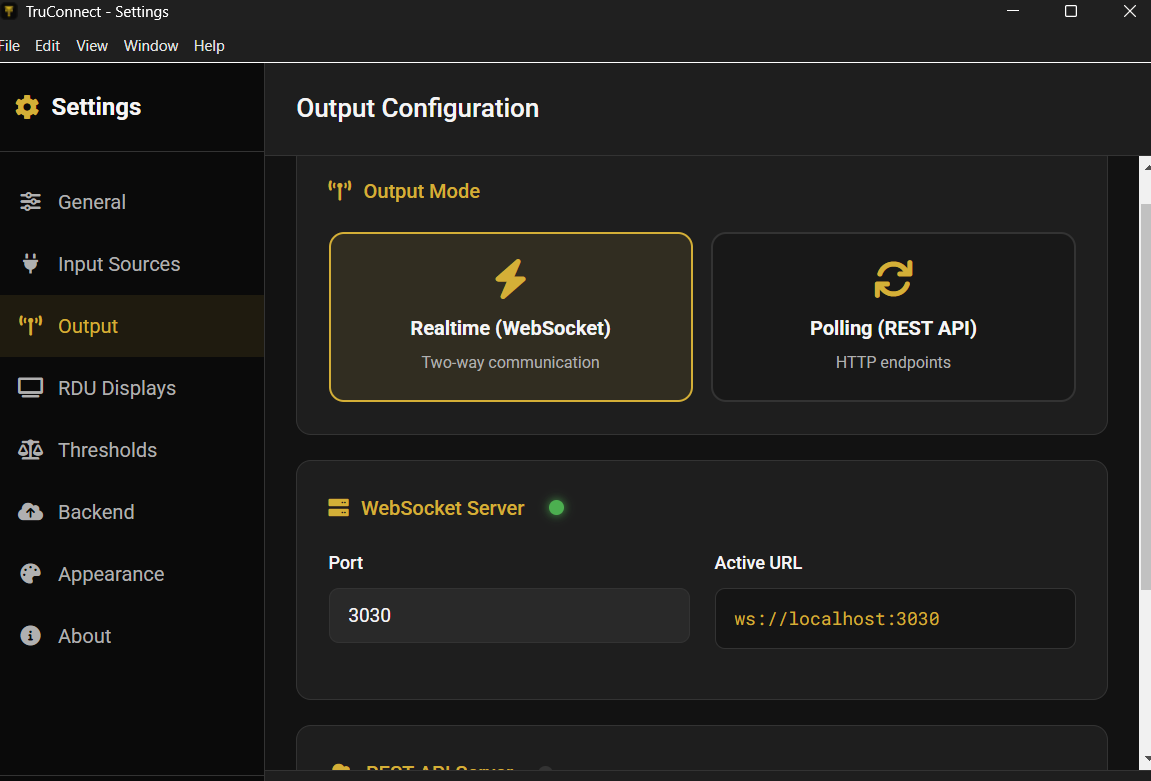

  4. Output configuration — set the local WebSocket port that the frontend will read from, plus any RDU board destinations. Output configuration RDU configuration

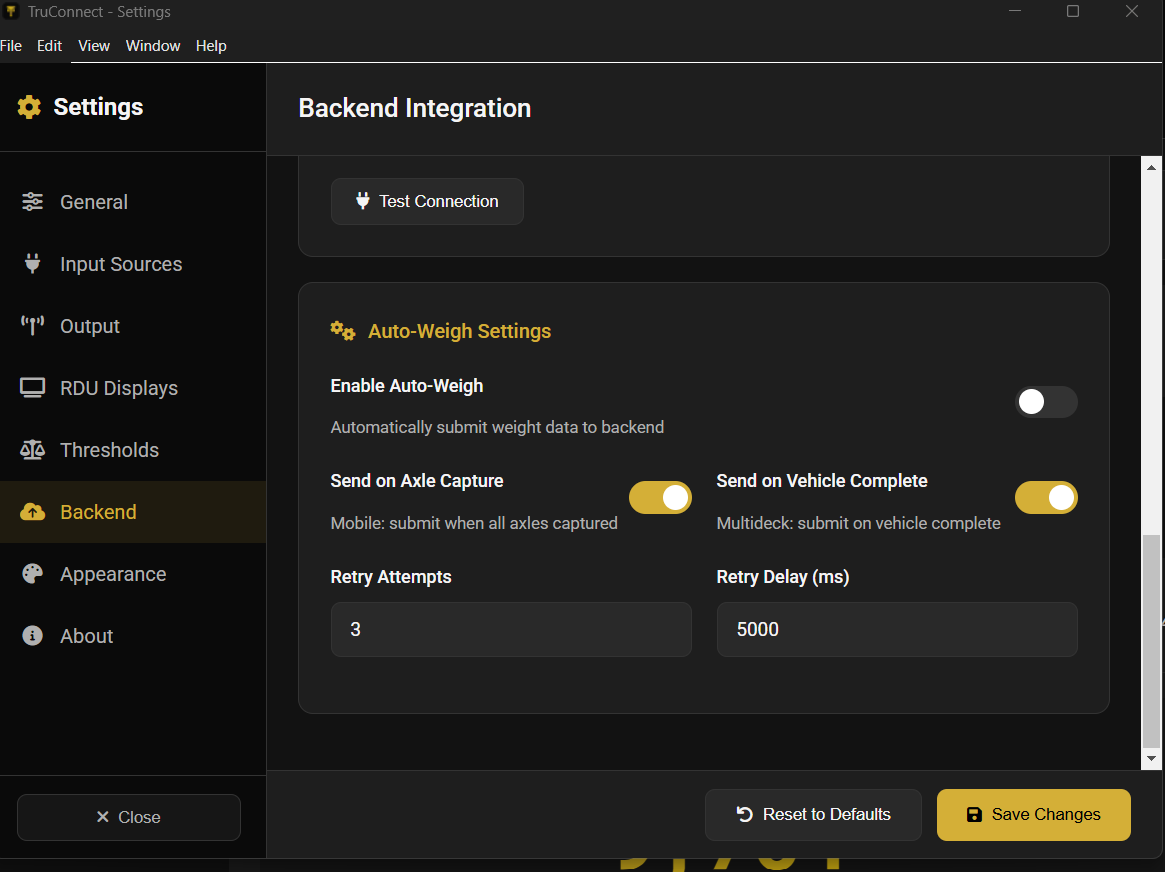

  5. Auto-weight — configure the stable-window and capture-threshold rules. These determine when a live reading is considered "settled" enough to auto-submit. Auto-weight config

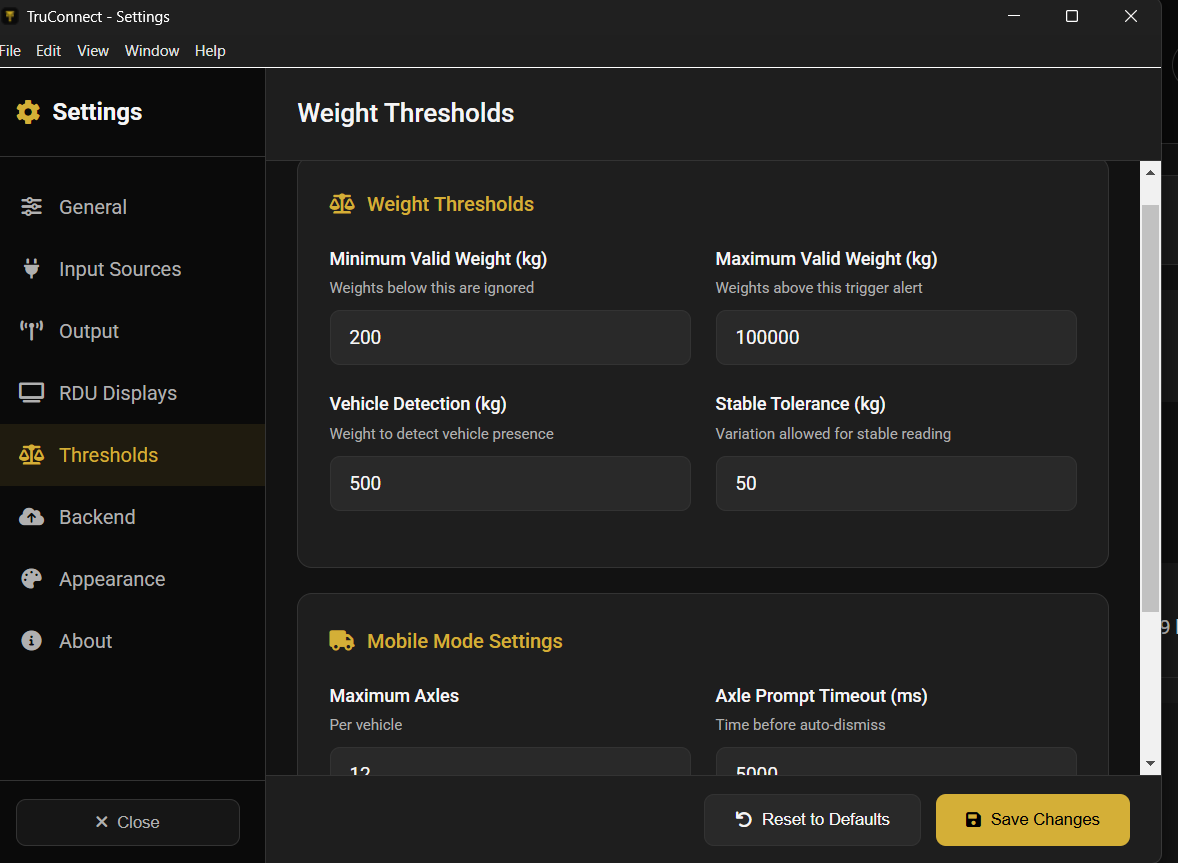

  6. Threshold — tune the minimum weight that will trigger capture, the reject-band around zero, and the motion tolerance. Threshold config

Verify the end-to-end feed

  1. Open the TruLoad frontend weighing screen for this station.
  2. Place a known load on the scale or run the TruConnect simulation harness.
  3. Confirm the live weight updates in the browser within a second of the scale settling.
  4. Submit a test weighing and verify the ticket prints against the expected axle configuration.

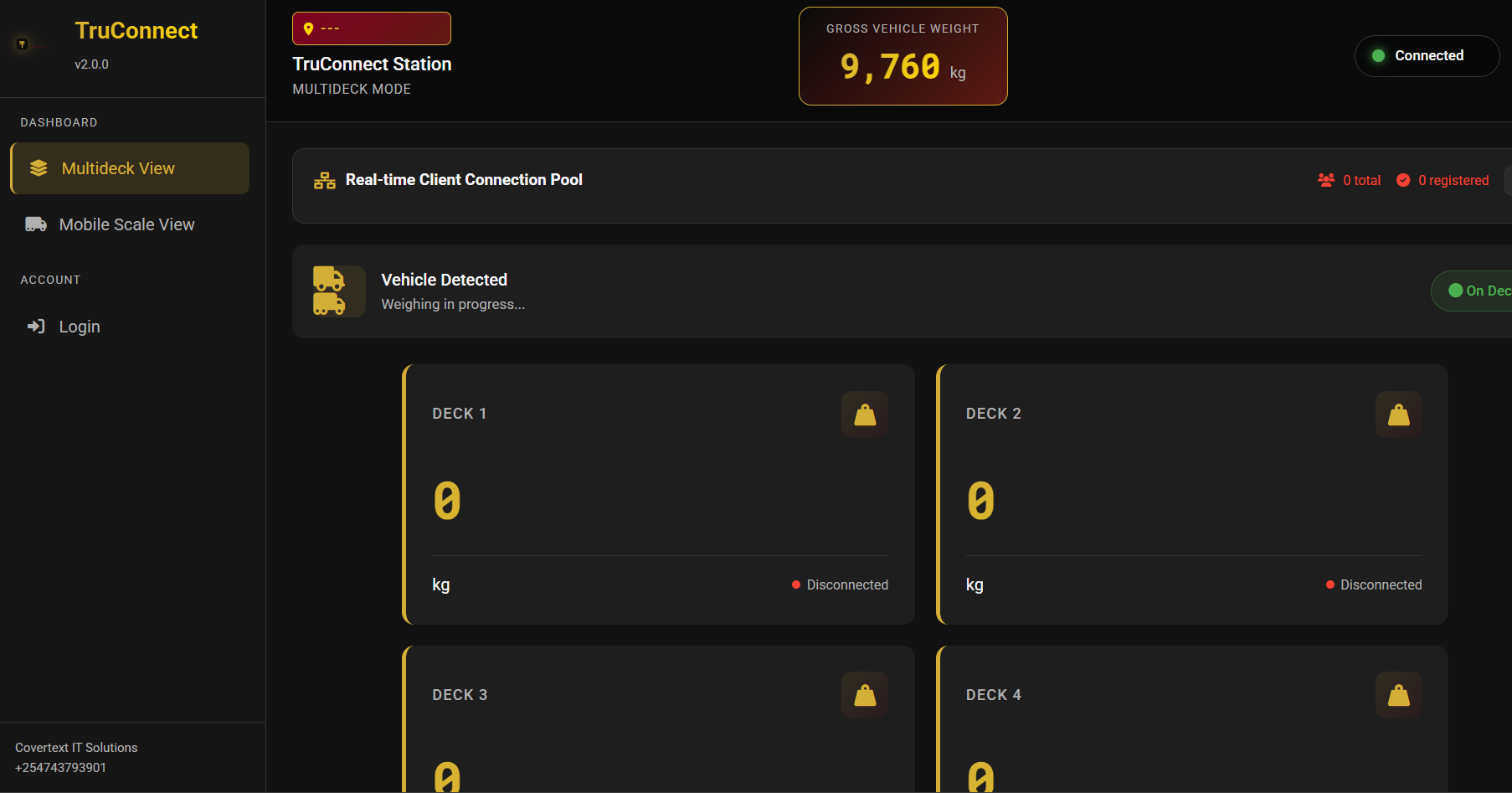

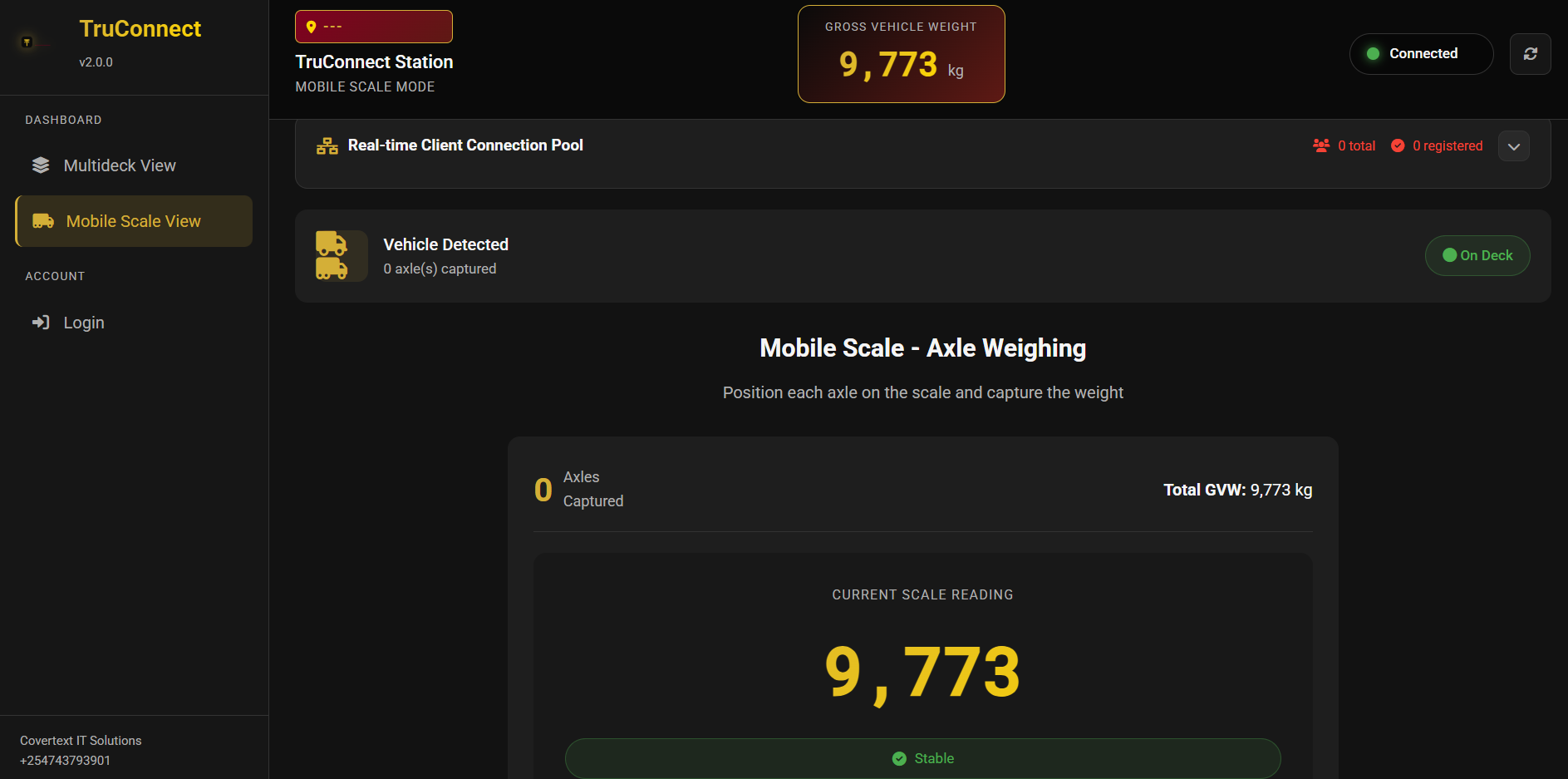

Mobile view Multideck view

Updating an existing install

  1. Close TruConnect.
  2. Download the new installer from the release page.
  3. Run the installer; it detects the existing install and upgrades in place. Local settings and the SQLite database are preserved.
  4. Start TruConnect and check that input sources and outputs are still active.

If you need to roll back, uninstall the current version from Apps & Features, then re-install the previous release from the release history link above.

Troubleshooting

  • No live weight in the browser — check the local WebSocket port is not blocked by the firewall, and that the frontend's TruConnect URL matches the port set in Output configuration.
  • Scale connected but no reading — wrong parser or baud rate. Re-check the scale manual against the parser selection in Input source.
  • Readings jitter — widen the motion tolerance in Threshold or the stable window in Auto-weight.
  • RDU board not updating — open Output configuration and confirm the board IP/serial settings; a non-responding board is logged to %APPDATA%/TruConnect/logs.
